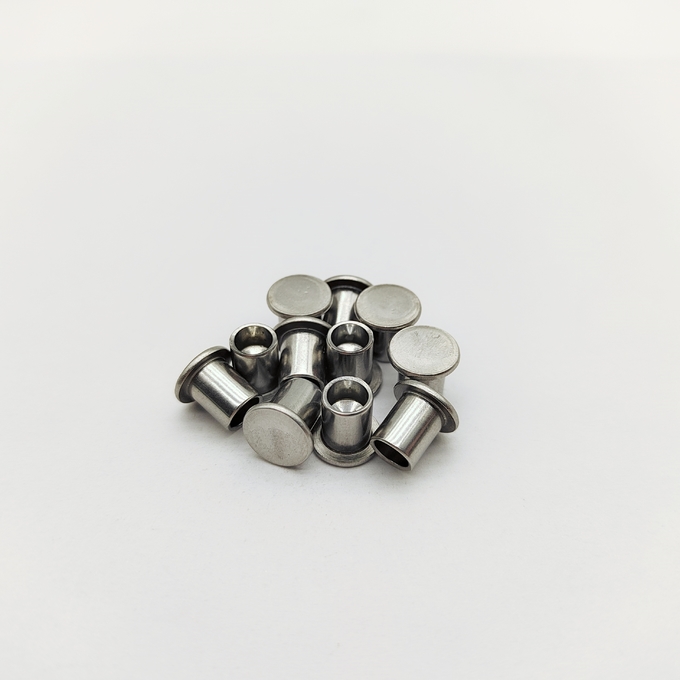

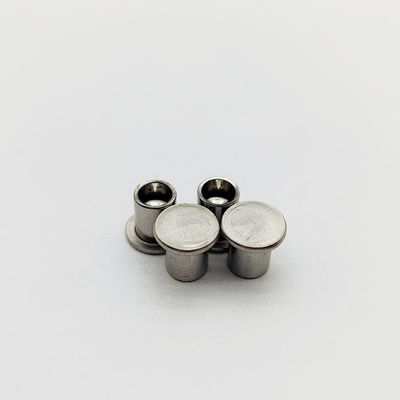

304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | guanbiao |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | Dostosowywanie |
Zapłata:
| Minimalne zamówienie: | 50000 |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Plastikowa torba + karton + paleta |
| Czas dostawy: | 15-20 dni roboczych |
| Zasady płatności: | T/t |
| Możliwość Supply: | 5000000 |
|
Szczegóły informacji |
|||
| Siła ścinania: | M4: 1850N (Din en ISO 898) | zastosowanie produktu: | Montaż obwodu elektronicznego |
|---|---|---|---|
| Styl głowy: | płaski | Nitka: | NIE |
| Czas realizacji: | 15 ~ 20 dni roboczych | Finsh: | Pasywacja (matowy szary) |
| Metoda instalacji: | Niting | Tworzywo: | Stal nierdzewna |
| Tolerancyjny: | +/- 0,05 mm | Wymiar: | Możemy dostosować do Twojego wymiaru |
| Podkreślić: | 304 stainless steel DIN 7340 rivets,semi-tubular rivets flat head,M3-M8 stainless steel rivets |
||
opis produktu
304 SS Semi-Tubular Rivets - Flat Head 120° - DIN 7340 - Cold Forged - M3 to M8 Sizes
Product Attributes
| Attribute | Value |
|---|---|
| Shear Strength | M4: 1,850N (DIN EN ISO 898) |
| Product Application | Electronics chassis assembly |
| Head Style | Flat |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Passivation (Matte Grey) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customize to your dimension |
Product Description
Corrosion-resistant A2 stainless semi-tubular rivets. Flat head 120°, hollow depth 1.25-1.75D. Sizes M3-M8. Passivated finish. For electronics, furniture & machinery. Custom lengths available.
Achieve flush, high-strength joints with cold-forged A2 stainless steel semi-tubular rivets. Featuring a precision 120° flat head and controlled hollow depth (1.5D), these DIN 7340-compliant rivets provide reliable fastening for sheet metal, plastics, and leather. The passivated finish resists corrosion in indoor industrial environments.
Technical Specifications
Head Type: Flat Head (120° Countersink Angle)
Head Diameter (D): M3: 6.0mm; M4: 8.0mm; M5: 9.5mm; M6: 11.0mm
Total Length (L): M3: 6-20mm; M5: 8-30mm; M8: 12-50mm
Hollow Depth (H): 1.5D (e.g., M4: 6.0mm)
Hole Diameter (d): 0.6D (e.g., M4: 2.4mm)
Material: A2-70 Stainless Steel (304)
Surface Treatment: Passivation (Matte Grey)
Shear Strength: M4: 1,850N (DIN EN ISO 898)
Customization: Non-standard L/H ratios, head angles
Primary Uses & Applications
- Electronics chassis assembly
- Furniture hinges and brackets
- Machinery guards
- Automotive interior trim
- Leather goods hardware
How to Use
- Drill hole = Rivet diameter +0.1mm (e.g., Ø4.1mm for M4)
- Insert rivet through materials
- Set with semi-tubular rivet tool:
- Position die supporting head
- Apply pressure to deform hollow end into 1.5D flange
- Optimal pressure: M4=3.5kN
